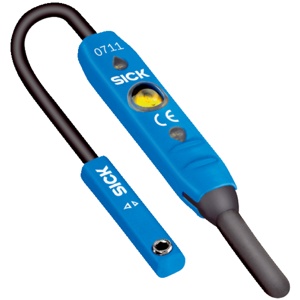

MZ2Q-CSSPSKR0S20: Cylinder Sensors for Grippers with Two End Positions
Technical Specifications of Cylinder Sensors for Grippers with Two End Positions MZ2Q-CSSPSKR0S20:
| Housing length | 19.5 mm |
| Switching output | 2 x PNP |
| Output function | NO |
| Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.5 m |
Cylinder Sensors for Grippers with Two End Positions MZ2Q-CSSPSKR0S20 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | C-slot |
| Preferred manufacturer slot | SMCBimbaSchunk |
| Detection zone | 0 mm ... 50 mm; 0 mm ... 50 mm |
| Cylinder types with adapter | - |
| Housing length | 19.5 mm |
| Switching output | 2 x PNP |
| Output function | NO |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67 |
| Teach-in control panel | Teaching in switching points 1 and 2 |
| Supply voltage | 12 V DC ... 30 V DC |
| Power consumption | Typ. 20 mA, without load |
| Voltage drop | ≤ 2.2 V |
| Continuous current Ia | ≤ 100 mA |
| Protection class | III |
| Hysteresis, typ. | 1 mT |
| Reproducibility | ≤ 0.1 mT |
| Ambient operating temperature | –20 °C ... +75 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.5 m |
| Cable diameter | Ø 2.6 mm |
| Bending radius | With fixed installation > 5 x cable diameter |
| Cable outlet | Axial |
| MaterialHousingPlasticCablePUR | Material |
| Housing | Plastic |
| Cable | PUR |
Mail Us for your needs in Cylinder Sensors for Grippers with Two End Positions MZ2Q-CSSPSKR0S20 with budget-friendly prices. The Main Technical Parameters of MZ2Q-CSSPSKR0S20 include housing length of 19.5 mm and 2 x PNP switching outputs. This sensor is designed with a NO output function, operating on DC 4-wire electrical wiring system. Rated IP67 , it ensures excellent protection against dust and water in challenging industrial environments. The supply voltage ranges from 12 V DC ... 30 V DC, with a power consumption of Typ. 20 mA, without load. The voltage drop is ≤ 2.2 V and the continuous current (Ia) is ≤ 100 mA, ensuring efficient and reliable performance. The connection type is a Cable with connector M8, 4-pin, with knurled nuts, 0.5 m, providing flexibility in installation. The housing is constructed from durable Plastic, while the cable material is made of long-lasting PUR. Customize Your Experience with a Quote for your requirement of Cylinder Sensors for Grippers with Two End Positions. Experience the difference with our competitive pricing and superior support over other Suppliers.
