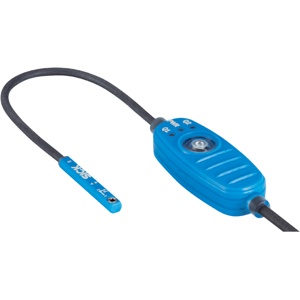

MPS-G50CSH53E31DZZ: Sick MPS-G Position Sensors for Grippers and Cylinders
Technical Specifications of Sick MPS-G Position Sensors for Grippers and Cylinders MPS-G50CSH53E31DZZ:
| Measuring Range | 50 mm |
| Switching Output | 2 x push-pull: PNP/NPN |
| Output Function | IO-Link |
| Connection Type | Cable with connector M12, with knurled nuts, 0.3 m; Cable, 4-wire, 0.5 m |
Sick MPS-G Position Sensors for Grippers and Cylinders MPS-G50CSH53E31DZZ Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | C-slot |
| Preferred manufacturer slot | SMC, Schunk, PHD, Bimba |
| Detection zone | 0 mm ... 50 mm |
| Cylinder types with adapter | T-slot cylindersRound body cylinderProfile cylinders and tie-rod cylinders |
| Measuring range | 50 mm |
| Housing length | 25 mm |
| Switching output | 2 x push-pull: PNP/NPN |
| Output function | IO-Link |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67 |
| Teach-in button | Initialization of dynamic teach for 1 to 3 switching pointsManual programming of 1 to 3 switching points (digital outputs)Adjustment of overrun distance per switching pointResetting of switching points |
| Diagnostic functionality | Actuator diagnosis |
| Special features | Completely embedded mounting in the slot, providing protection |
| Supply voltage | 10 V DC ... 30 V DC |
| Voltage drop | ≤ 1 V |
| Continuous current Ia | ≤ 200 mA |
| Protection class | III |
| Time delay before availability | 0.175 s |
| Power consumption | ≤ 550 mW |
| Required magnetic field sensitivity, typ. | 2 mT ... 20 mT |
| Overrun distance | Configurable |
| Hysteresis | Configurable |
| Resolution, typ. | 0,01 mm |
| Linearity error, typ. | 0.3 mm |
| Repeat accuracy, typ. | 0.05 mm |
| Sampling rate, typ. | 1 ms |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Digital switching output | Yes |
| Teach-in | Yes |
| Ambient operating temperature | –20 °C ... +70 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Connection type | Cable with connector M12, with knurled nuts, 0.3 m; Cable, 4-wire, 0.5 m |
| Conductor cross section | 0.08 mm² |
| Cable diameter | Ø 2.6 mm; Ø 2.2 mm |
| Bending radius | For flexible use > 10 x cable diameter; For flexible use > 10 x cable diameter |
| Conductor size | 0.09 mm² |
| Housing | Plastic, PA, strengthened |
| Cable | PUR |
| Control element | Plastic, TPU, reinforced |
IndMALL Automation Dealing offers Sick MPS-G Position Sensors for Grippers and Cylinders MPS-G50CSH53E31DZZ at unbeatable prices. The Main Technical Parameters of MPS-G50CSH53E31DZZ are preferred manufacturers like SMC, Schunk, PHD, Bimba, featuring a measuring range of 50 mm and a compact housing length of 25 mm. The sensor is equipped with 2 x push-pull: PNP/NPN and operates with IO-Link, providing efficient data communication. It uses a DC 4-wire electrical wiring system and has an IP67 enclosure rating, ensuring durability in harsh environments. The supply voltage ranges from 10 V DC ... 30 V DC, with power consumption of ≤ 550 mW, making it energy-efficient. The connection type includes a Cable with connector M12, with knurled nuts, 0.3 m; Cable, 4-wire, 0.5 m cable. The housing is made from Plastic, PA, strengthened, while the cable is made of PUR, ensuring long-term reliability. The control element is Plastic, TPU, reinforced, offering additional robustness for industrial applications. Take the First Step with a Quote for your requirement of Sick MPS-G Position Sensors for Grippers and Cylinders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
