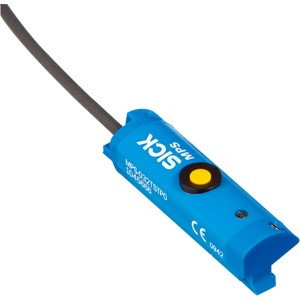

MPS-256TSTU0: Sick T-Slot Industrial Sensors With LED Indicators
Technical specifications of Sick T-Slot Industrial Sensors With LED Indicators MPS-256TSTU0 j83!u9506pk89:
| Housing Length | 269 mm |
| Measuring Range | 256 mm |
| Output Function | Analog |
| Connection Type | Cable, 4-wire, 2 m |
Sick T-Slot Industrial Sensors With LED Indicators MPS-256TSTU0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | - |
| Measuring Range | 256 mm |
| Housing Length | 269 mm |
| Output Function | Analog |
| Electrical Wiring | DC 4-wire |
| Analog Output (Voltage) | - |
| Analog Output (Current) | - |
| Enclosure Rating | IP67 |
| Teach-In Control Panel | - |
| Supply Voltage | 15 V DC ... 30 V DC |
| Power Consumption | 22 mA, without load |
| Max. Load Resistance | - |
| Min. Load Resistance | - |
| Protection Class | III |
| Time Delay Before Availability | 1.5 s |
| Required Magnetic Field Sensitivity (Typ.) | 4 mT ... 30 mT |
| Resolution (Typ.) | 0.03 % FSR (max. ≥ 0.05 mm) |
| Linearity Error (Typ.) | 0.3 mm |
| Repeat Accuracy (Typ.) | 0.06 % FSR (≥ 0.1 mm) |
| Sampling Rate (Typ.) | 1 ms |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Teach-In | - |
| Ambient Operating Temperature | –20 °C ... +70 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-7 |
| Connection Type | Cable, 4-wire, 2 m |
| Conductor Cross Section | 0.08 mm² |
| Cable Diameter | - |
| Bending Radius | - |
| Cable Outlet | Axial |
| Material Housing / Plastic Cable PUR | Material |
| Housing | Plastic |
| Cable | PUR |
Send Your Inquiry for Sick T-Slot Industrial Sensors With LED Indicators MPS-256TSTU0 with cost-effective solutions. Essential Technical Specs of MPS-256TSTU0 are housing length of 269 mm and an Analog output function, making them ideal for precise industrial applications. These sensors use DC 4-wire electrical wiring and support. The enclosure is rated IP67, ensuring durability in harsh environments. The supply voltage ranges from 15 V DC ... 30 V DC, with a power consumption of 22 mA, without load. The maximum load resistance is -, providing reliable performance under various conditions. The connection type includes a Cable, 4-wire, 2 m length. The housing is made of durable Plastic, and the cable is constructed with high-quality PUR and Material. Capture the Best Deal with a Quote for your requirement of Sick T-Slot Industrial Sensors With LED Indicators. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
