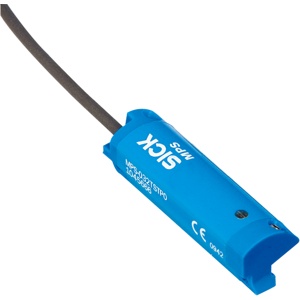

MPS-224TSNU0: Sick Industrial Sensors With IP67 Enclosure
Technical specifications of Sick Industrial Sensors With IP67 Enclosure MPS-224TSNU0 30r9i482%9tv8:
| Housing Length | 237 mm |
| Measuring Range | 224 mm |
| Output Function | Analog |
| Connection Type | Cable, 4-wire, 2 m |
Sick Industrial Sensors With IP67 Enclosure MPS-224TSNU0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | Round body cylinderProfile cylinders and tie-rod cylindersDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2SMC cylinders with C-slot |
| Measuring Range | 224 mm |
| Housing Length | 237 mm |
| Output Function | Analog |
| Electrical Wiring | DC 4-wire |
| Analog Output (Voltage) | - |
| Analog Output (Current) | - |
| Enclosure Rating | IP67 |
| Teach-In Control Panel | - |
| Supply Voltage | 15 V DC ... 30 V DC |
| Power Consumption | 22 mA, without load |
| Max. Load Resistance | - |
| Min. Load Resistance | - |
| Protection Class | III |
| Time Delay Before Availability | 1.5 s |
| Required Magnetic Field Sensitivity (Typ.) | 4 mT ... 30 mT |
| Resolution (Typ.) | 0.03 % FSR (max. ≥ 0.05 mm) |
| Linearity Error (Typ.) | 0.3 mm |
| Repeat Accuracy (Typ.) | 0.06 % FSR (≥ 0.1 mm) |
| Sampling Rate (Typ.) | 1 ms |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Teach-In | - |
| Ambient Operating Temperature | –20 °C ... +70 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-7 |
| Connection Type | Cable, 4-wire, 2 m |
| Conductor Cross Section | 0.08 mm² |
| Cable Diameter | Ø 2.6 mm |
| Bending Radius | With fixed installation > 5 x cable diameter |
| Cable Outlet | Axial |
| Material Housing / Plastic Cable PUR | Material |
| Housing | Plastic |
| Cable | PUR |
Obtain a Quote for Sick Industrial Sensors With IP67 Enclosure MPS-224TSNU0 at economical prices. Specifications Overview for MPS-224TSNU0 reveals housing length of 237 mm and an Analog output function, making them ideal for precise industrial applications. These sensors use DC 4-wire electrical wiring and support. The enclosure is rated IP67, ensuring durability in harsh environments. The supply voltage ranges from 15 V DC ... 30 V DC, with a power consumption of 22 mA, without load. The maximum load resistance is -, providing reliable performance under various conditions. The connection type includes a Cable, 4-wire, 2 m length. The housing is made of durable Plastic, and the cable is constructed with high-quality PUR and Material. Take the First Step with a Quote for your requirement of Sick Industrial Sensors With IP67 Enclosure. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
