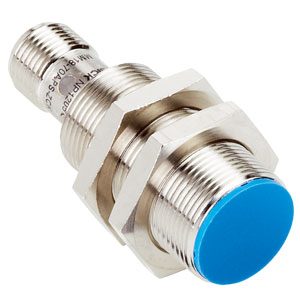

Sick MM12-60ANS-ZCK Proximity Sensor
The Sick MM12-60ANS-ZCK Magnetic Sensor offers a Metric; Short-body, 0 mm ... 60 mm sensing range, 28 mm thread length, NPN NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Magnetic Sensor category, this model belongs to the MQ Series.
| Brand | Sick |
| Product Type | Magnetic Sensor |
| Model Number | MM12-60ANS-ZCK |
Sick MM12-60ANS-ZCK Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Sensing range Sn | 0 mm ... 60 mm |
| Safe sensing range Sa | 48.6 mm |
| Magnetic sensitivity | 1 mT |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 2) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % 1) |
| Voltage drop | β€ 2 V 2) |
| Current consumption | 10 mA 3) |
| Time delay before availability | β€ 20 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | β€ 1 % 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| Cable material | - |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Metal, Nickel-plated brass |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Magnetic alignment | Axial |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Housing length | 46 mm |
| Thread length | 28 mm |
| Tightening torque, max. | 15 Nm |
Send Your Inquiry for Sick 1k Swithing Magnet Sensors MM12-60ANS-ZCK part no: 1040071 with cost-effective solutions. Essential Technical Specs of MM12-60ANS-ZCK, 1040071 are Metric; Short-body Housing that ensures durability and adaptability in diverse environments. With a Sensing range Sn of 0 mm ... 60 mm it provides accurate detection capabilities. The Switching frequency is an impressive 1,000 Hz allowing for fast and responsive operation. The Connection type is a Male connector M12, 4-pin in length, providing easy and flexible installation. The sensor uses a NPN Switching output with DC 3-wire Electrical wiring, operating on a Supply voltage of 10 V DC ... 30 V DC. The Voltage drop is minimal at β€ 2 V 2) and the Current consumption is just 10 mA 3) ensuring energy efficiency. The Housing material is made of robust Metal, Nickel-plated brass and the Thread size is M12 x 1. Capture the Best Deal with a Quote for your requirement of Sick 1k Swithing Magnet Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
