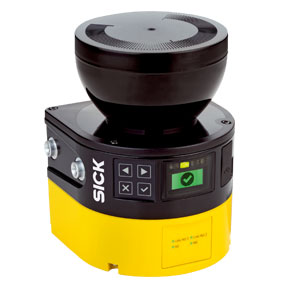

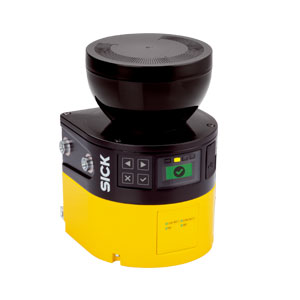

Sick MICS3-CBAZ40PZ1P01 Safety Scanner
The Sick MICS3-CBAZ40PZ1P01 Safety Scanner provides 4 m protective field, 275° scanning angle, and SIL 2 safety indoors applications. This Sick Safety Scanner from the microscan3 series supports PL d, Category 3, monitors up to 128 fields, uses 24 V DC supply, and operates with IP65 enclosure protection.
| Brand | Sick |
| Product Type | Laser Safety Scanner |
| Product | MICS3-CBAZ40PZ1P01 |
Sick MICS3-CBAZ40PZ1P01 Safety Scanner – Technical Specifications
| Specification | Value |
|---|---|
| Sub product family | microScan3 Pro I/O - EFI-pro |
| Application | Indoor |
| Protective field range | 4 m |
| Warning field range | 40 m |
| Number of simultaneously monitored fields | ≤ 8 |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Angular resolution | 0.39° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm |
| Response time | ≥ 95 ms |
| Protective field supplement | 65 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | The safety outputs via the network are logic 0. |
| Connection type | Voltage supply, 1 x male connector, M12, 4-pin, A-coded. Fieldbus, industrial network, 2 x M12 female connectors, 4-pin, D-coded. |
| Universal I/Os | - |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 7.2 W |
| Dimensions (W x H x D) | 112 mm x 150.7 mm x 111.1 mm (without system plug) |
| Weight | 1.45 kg |
| Housing material | Aluminum |
| Housing color | RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Type of light | Pulsed laser diode |
| Wave length | 845 nm |
The MICS3-CBAZ40PZ1P01 Sick 24VDC Laser Safety Scanner is a Type 3 safety scanner designed for indoor industrial automation environments. This model belongs to the microscan3 series and is used for controlled area protection. It delivers a 4 m protective field, a 40 m warning field, and a wide 275° scanning angle. The device complies with SIL 2 and PL d safety requirements for machinery.
The Sick MICS3-CBAZ40PZ1P01 Safety Scanner is applied in conveyors, packaging machines, automated production cells, and assembly lines. It supports multiple monitored fields and monitoring cases for flexible safety zone configuration. Defined response times and stable safety outputs help maintain safe machine stopping distances while supporting continuous industrial operation.
The MICS3-CBAZ40PZ1P01 Sick 24VDC Laser Safety Scanner combines defined safety performance with robust construction. With IP65 enclosure rating, aluminum housing, and Ethernet and USB configuration interfaces, it is suitable for long-term industrial use. Supported by Sick safety engineering and a 20-year mission time, this safety scanner is a dependable choice for indoor machine safeguarding.
