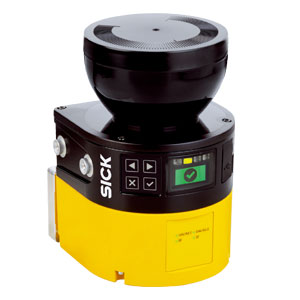

Sick MICS3-ABAZ55IZ1P01 Safety Scanner
The Sick MICS3-ABAZ55IZ1P01 is a state-of-the-art Safety Laser Scanner engineered for indoor automation environments. Designed to provide advanced field monitoring, this laser-based safety device is ideal for ensuring workplace safety in industrial applications.
| Brand | Sick |
| Product Type | Laser Safety Scanner |
| Product | MICS3-ABAZ55IZ1P01 |
Sick MICS3-ABAZ55IZ1P01 Safety Scanner β Technical Specifications
| Specification | Value |
|---|---|
| Sub product family | microScan3 Pro I/O - EFI-pro |
| Application | Indoor |
| Protective field range | 5.5 m |
| Warning field range | 40 m |
| Number of simultaneously monitored fields | β€ 4 |
| Number of fields | 8 |
| Number of monitoring cases | 8 |
| Scanning angle | 275Β° |
| Angular resolution | 0.39Β° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm |
| Response time | β₯ 95 ms |
| Protective field supplement | 65 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | The safety outputs via the network are logic 0. |
| Connection type | Voltage supply, 1 x male connector, M12, 4-pin, A-coded. Fieldbus, industrial network, 2 x M12 female connectors, 4-pin, D-coded. |
| Universal I/Osβ | - |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 7.2 W |
| Dimensions (W x H x D) | 112 mm x 150.7 mm x 111.1 mm (without system plug) |
| Weight | 1.45 kg |
| Housing material | Aluminum |
| Housing color | RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Type of light | Pulsed laser diode |
| Wave length | 845 nm |
The Sick MICS3-ABAZ55IZ1P01 is a premium Safety Laser Scanner from the microScan3 Pro I/O β EFI-pro family, delivering high-precision protective solutions for demanding industrial environments. With a protective field range of up to 5.5 meters and a warning field range of 40 meters, this scanner provides superior coverage for safeguarding personnel and machinery. It supports simultaneous monitoring of β€ 4 fields, with up to 8 configurable fields and 8 monitoring cases, enabling dynamic safety zone management. The wide 275Β° scanning angle and fine angular resolution of 0.39Β° ensure accurate object detection, even in complex layouts.
This Type 3 safety scanner complies with key global standards including SIL 2 (IEC 61508), Category 3 (EN ISO 13849), and Performance Level PL d, with a robust mission time (TM) of 20 years. Configuration and diagnostics are managed through a PC using Safety Designer Software, connected via USB 2.0, Mini-USB, or Ethernet. The device includes a full-color graphic display and LED indicators for real-time status feedback. It features a rugged aluminum housing in RAL 1021 yellow and RAL 9005 black, paired with a polycarbonate optics cover enhanced with a scratch-resistant finish.
Operating at 24 V DC (range 16.8 V to 30 V DC) and consuming only 7.2 W, the scanner maintains efficiency without compromising on reliability. With an IP65 enclosure rating and a working temperature range from β10 Β°C to +50 Β°C, the MICS3-ABAZ55IZ1P01 is ready for the toughest environments. Its pulsed laser diode emits at a wavelength of 845 nm, ensuring high detection precision. Visit the official Sick product page for complete details or get a quote today to elevate your safety infrastructure with industry-leading protection.
