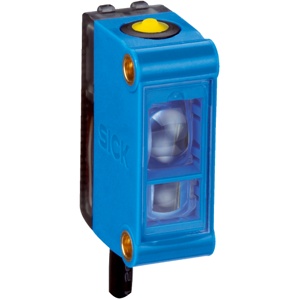

Sick LUTM-UP817A2P Luminescence Sensor
The LUTM-UP817A2P is a Sick PNP Luminescence Sensor featuring β€ 12.5 mm sensing distance and 370 nm UV LED source. Manufactured by Sick, this Sick Luminescence Sensor belongs to the LUT Series with 8 mm ... 20 mm working range, 6 kHz switching frequency, 80 Β΅s response time, PNP output, IO-Link adjustment, 12β24 V DC supply, IP67 enclosure, vertical 2 mm x
| Brand | Sick |
| Product Type | Luminescence Sensor |
| Model Number | LUTM-UP817A2P |
Sick LUTM-UP817A2P Luminescence Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Housing design | Small |
| Working range | 8 mm ... 20 mm |
| Light source | LED, UV |
| Wave length | 370 nm |
| Light emission | Long side |
| Light spot size | 2 mm x 2.5 mm 3) |
| Light spot direction | Vertical |
| Receiving range | 450 nm ... 750 nm |
| Adjustment | Cable, IO-Link |
| Teach-in mode | 2-point teach-in static/dynamic |
| Output function | Light/dark switching 4) |
| Supply voltage | 12 V DC ... 24 V DC 1) |
| Ripple | β€ 5 Vpp 2) |
| Current consumption | β€ 50 mA 3) |
| Switching frequency | 6 kHz 4) |
| Response time | 80 Β΅s 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV β€ 2 V / LOW approx. 0 V |
| Switching mode | Light/dark switching |
| Output current Imax. | < 100 mA 6) |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 70 g |
| Housing material | Plastic, ABS |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β20 Β°C ... +75 Β°C |
LUTM-UP817A2P Sick PNP Luminescence Sensors model is part of the LUT series designed for industrial automation applications requiring precise luminescent mark detection. The sensor operates with β€ 12.5 mm sensing distance, 370 nm UV LED emission, 6 kHz switching frequency, and 80 Β΅s response time. LUTM-UP817A2P supports PNP switching output and 12β24 V DC supply. As a Sick luminescence sensor in the LUT series, it ensures stable detection performance in controlled automation environments.
In conveyor systems, packaging machinery, and automated assembly lines, LUTM-UP817A2P enables accurate detection of UV-reactive materials and luminescent labels. The defined vertical light spot and controlled receiving range support consistent switching signals. With IO-Link adjustment and light/dark switching modes, integration into PLC-based control systems becomes straightforward. The IP67 enclosure and compact housing allow installation in tight machine spaces while maintaining reliable output under industrial operating temperatures.
LUTM-UP817A2P Sick PNP Luminescence Sensors configuration combines defined UV emission, protected circuitry, and stable PNP output for dependable automation use. With controlled response timing and sealed IP67 housing, the sensor aligns with LUT series specifications for industrial environments. Sick designs focus on electrical protection and consistent detection behavior, making this luminescence sensor suitable for engineers and system integrators managing inspection and marking verification processes.
