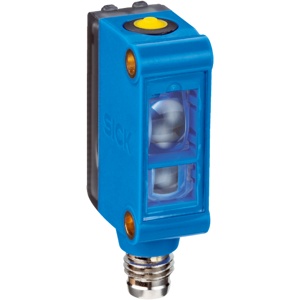

Sick LUTM-UP817A1P Luminescence Sensor
The Sick LUTM-UP817A1P Luminescence Sensor offers a Small design, β€ 12.5 mm sensing distance, Long side light emission, PNP output, and Male connector M8, 4-pin connection type. Manufactured by Sick under the Sick Luminescence Sensor category, this model belongs to the LUT Series.
| Brand | Sick |
| Product Type | Luminescence Sensor |
| Model Number | LUTM-UP817A1P |
Sick Luminescence Sensor LUTM-UP817A1P Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Housing design | Small |
| Working range | 8 mm ... 20 mm |
| Light source | LED, UV 2) |
| Wave length | 370 nm |
| Light emission | Long side |
| Light spot size | 2 mm x 2.5 mm 3) |
| Receiving range | 450 nm ... 750 nm |
| Adjustment | Cable, IO-Link |
| Output function | Light/dark switching 4) |
| Supply voltage | 12 V DC ... 24 V DC |
| Ripple | β€ 5 Vpp 2) |
| Current consumption | β€ 50 mA 3) |
| Switching frequency | 6 kHz 4) |
| Response time | 80 Β΅s 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV β€ 2 V / LOW approx. 0 V |
| Switching mode | Light/dark switching |
| Output current Imax. | < 100 mA 6) |
| Connection type | Male connector M8, 4-pin |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 70 g |
| Housing material | Plastic, ABS |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β20 Β°C ... +75 Β°C |
