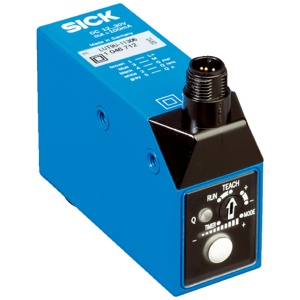

Home Brands Sick Luminescence sensors LUT Series LUT8U-11701 Sick LUT8U-11701 Luminescence Sensor The Sick LUT8U-11701 Luminescence Sensor offers a Large design, β€ 50 mm sensing distance, Long side light emission, PNP, NPN output, and Male connector M12, 5-pin connection type. Manufactured by Sick under the Sick Luminescence Sensor category, this model belongs to the LUT Series.
Brand Sick Product Type Luminescence Sensor Model Number LUT8U-11701
Sick Luminescence Sensor LUT8U-11701 Technical Specifications Specification Value Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm Sensing distance β€ 50 mm Housing design Large Working range 20 mm ... 70 mm Light source LED, UV 2) Wave length 375 nm Light emission Long side Light spot size Γ 6 mm Receiving filters KV 418 (standard) Receiving range 450 nm ... 750 nm Adjustment Manual (rotary switch) Output function Light switching Supply voltage 12 V DC ... 30 V DC Ripple < 5 Vpp 2) Current consumption < 100 mA 3) Switching frequency 2.5 kHz 4) Response time 200 Β΅s 5) Switching output PNP, NPN Switching output (voltage) PNP: HIGH = VSβ β€ 3 V / LOW = approx. 0 VNPN: HIGH = approx. UV / LOW β€ 2 V Switching mode Light switching Output current Imax. 100 mA Connection type Male connector M12, 5-pin Protection class II 6) Circuit protection UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression Enclosure rating IP67 Weight 400 g Housing material Metal, zinc diecast Ambient operating temperature β10 Β°C ... +55 Β°C Ambient temperature, storage β25 Β°C ... +75 Β°C
