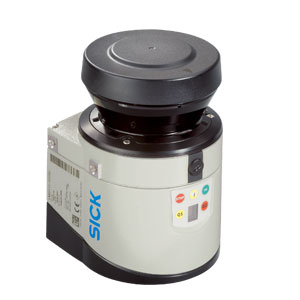

Sick LMS111-10100 LiDAR Sensor
The Sick LMS111-10100 LiDAR Sensor offers a 0.5 m ... 20 m working range, 10.8 V DC ... 30 V DC power supply, and 1 x M12 round connector connection. Manufactured by Sick under the LiDAR Sensor category, this model belongs to the LMS Series.
| Brand | Sick |
| Product Type | Lidar Sensor |
| Model Number | LMS111-10100 |
Sick LMS111-10100 LiDAR Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Application | Outdoor |
| Light source | Infrared (905 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 270Β° |
| Scanning frequency | 25 Hz, 50 Hz |
| Angular resolution | 0.25Β°, 0.5Β° |
| Heating | Yes |
| Working range | 0.5 m ... 20 m |
| Scanning range | At 10% remission factor, 18 m. At 90% remission factor, 20 m. |
| Connection type | 1 x M12 round connector |
| Supply voltage | 10.8 V DC ... 30 V DC |
| Power consumption | Typ. 8 W, heating typ. 35 W |
| Housing | - |
| Housing color | Gray (RAL 7032) |
| Enclosure rating | IP67 (EN 60529, Section 14.2.7) |
| Protection class | III (EN 50178 (1997;10)) |
| Weight | 1.1 kg |
| Dimensions (L x W x H) | 105 mm x 102 mm x 162 mm |
| MTBF | > 100 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | Β± 30 mm |
| Statistical error | 12 mm |
| Ethernet | β , TCP/IP. Function, Data interface (read result output). Data transmission rate, 10/100 MBit/s. |
| Serial | β , RS-232. Function, Data interface (read result output), Service interface. Data transmission rate, 9.6 kBaud ... 115.2 kBaud. |
| Digital outputs | 3 |
| Optical indicators | 7-segment display (plus 5 LEDs showing device status, contamination warning and initial condition) |
| Ambient operating temperature | β30 Β°C ... +50 Β°C |
| Storage temperature | β30 Β°C ... +70 Β°C |
Obtain a Quote for Sick 3 Digital Outputs LiDAR Sensor LMS111-10100 part no: 1041114 at economical prices. Specifications Overview for LMS111-10100, 1041114 reveals Outdoor applications, using an Infrared (905 nm) light source and classified as Laser Class 1 (IEC 60825-1:2014, EN 60825-1:2014). It offers a Horizontal, 270Β° aperture angle with a scanning frequency of 25 Hz, 50 Hz and operates within a working range of 0.5 m ... 20 m, with a scanning range At 10% remission factor, 18 m. At 90% remission factor, 20 m.. It connects 1 x M12 round connector and requires a 10.8 V DC ... 30 V DC supply voltage, consuming Typ. 8 W, heating typ. 35 W for heating. colored Gray (RAL 7032), with an IP67 (EN 60529, Section 14.2.7) enclosure rating and protection class III (EN 50178 (1997;10)). The dimensions of 105 mm x 102 mm x 162 mm. The MTBF is > 100 years, and MTTFD is > 100 years. The sensor has a systematic error of Β± 30 mm and a statistical error of 12 mm, 3 output. It operates between β30 Β°C ... +50 Β°C and can be stored between β30 Β°C ... +70 Β°C. Take the First Step with a Quote for your requirement of Sick 3 Digital Outputs LiDAR Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
