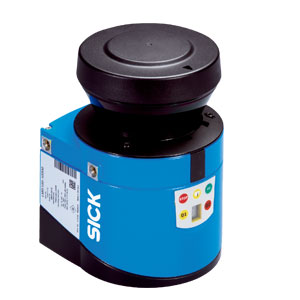

Sick LMS100-10000 LiDAR Sensor
The Sick LMS100-10000 LiDAR Sensor provides 270° scanning, 25–50 Hz frequency, and 20 m indoor detection range capability applications. This Sick LiDAR Sensor uses infrared 905 nm light, operates with IP65 enclosure, and supports Ethernet TCP/IP and RS-232 interfaces. Positioned within the Sick LiDAR Sensor portfolio, the LMS100-10000 Sick Infrared LiDAR Sensor supports reliable object detection for indoor industrial automation.
| Brand | Sick |
| Product Type | Lidar Sensor |
| Model Number | LMS100-10000 |
Sick LMS100-10000 LiDAR Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Application | Indoor |
| Light source | Infrared (905 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 270° |
| Scanning frequency | 25 Hz, 50 Hz |
| Angular resolution | 0.25°, 0.5° |
| Heating | No |
| Working range | 0.5 m ... 20 m |
| Scanning range | At 10% remission factor, 18 m. At 90% remission factor, 20 m |
| Connection type | 1 x system plug with screw terminal block |
| Supply voltage | 10.8 V DC ... 30 V DC |
| Power consumption | Typ. 8 W |
| Housing | Al |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (EN 60529, Section 14.2.5) |
| Protection class | III (EN 50178 (1997;10)) |
| Weight | 1.1 kg |
| Dimensions (L x W x H) | 105 mm x 102 mm x 152 mm |
| MTBF | > 100 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | ± 300 mm |
| Statistical error | 12 mm |
| Ethernet | ✔ , TCP/IP. Function, Data interface (read result output). Data transmission rate, 10/100 MBit/s. |
| Serial | ✔ , RS-232. Function, Data interface (read result output), Service interface. Data transmission rate, 9.6 kBaud ... 115.2 kBaud. |
| Digital outputs | 3 |
| Optical indicators | 7-segment display (plus 5 LEDs showing device status, contamination warning and initial condition) |
| Ambient operating temperature | 0 °C ... +50 °C |
| Storage temperature | –30 °C ... +70 °C |
The LMS100-10000 Sick Infrared LiDAR Sensor is a LiDAR Sensor designed for indoor industrial automation environments. This model supports 0.5 m to 20 m working range, 25 Hz and 50 Hz scanning frequency, and a 270° horizontal aperture angle. Operating with infrared 905 nm light and Laser Class 1 compliance, it belongs to the LMS Series and is used where stable indoor area monitoring is required.
In industrial applications, the LMS100-10000 LiDAR Sensor is used for conveyor monitoring, packaging lines, material flow control, and automated assembly systems. The wide scanning angle enables consistent detection of almost any object shape, while defined angular resolution supports repeatable measurement output. Integrated digital outputs and optical indicators assist with system status monitoring and diagnostics.
The Sick LMS100-10000 LiDAR Sensor combines long service life, controlled error behavior, and industrial communication interfaces for reliable automation integration. Ethernet TCP/IP and RS-232 connectivity support straightforward system communication. With IP65 protection, aluminum housing, and stable indoor performance characteristics, the LMS100-10000 is suited for continuous industrial use where dependable LiDAR-based sensing is required.
