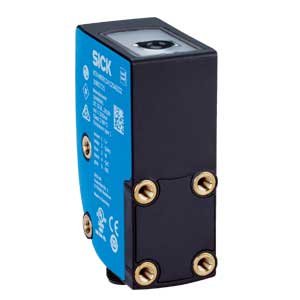

Sick KTX-WS91142242ZZZZ Contrast Sensor
Sick KTX-WS91142242ZZZZ Contrast Sensor provides β€ 13 mm sensing distance, RGB LED light source, and 10 Β΅s response time performance. This Sick PNP, NPN Output Contrast Sensor features PNP and NPN switching outputs, IP67 enclosure rating, 10.8β28.8 V DC supply, large 30 mm Γ 53 mm Γ 78.5 mm housing, Β±5 mm sensing tolerance, vertical light spot direction, male connector M12 4-pin connection, and belongs to the KT series for industrial automation in India.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WS91142242ZZZZ |
Sick KTX-WS91142242ZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | PNP, NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 4-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
KTX-WS91142242ZZZZ Sick PNP, NPN Output Contrast Sensor is designed for contrast-based detection in industrial automation systems. The KTX-WS91142242ZZZZ Sick PNP, NPN Output Contrast Sensor delivers β€ 13 mm sensing distance, RGB LED light source, 10 Β΅s response time, and PNP and NPN switching outputs for flexible integration into control circuits. It belongs to the KT series and operates on 10.8β28.8 V DC supply with IP67 enclosure rating for stable factory operation.
The KTX-WS91142242ZZZZ is applied in packaging lines, conveyor systems, printing machines, and automated assembly processes requiring precise contrast mark detection. Its RGB LED enables accurate detection across different surface colors, while the fast 10 Β΅s response time supports high-speed production cycles. The M12 male connector simplifies installation and ensures secure electrical connection in control panels.
KTX-WS91142242ZZZZ Sick PNP, NPN Output Contrast Sensor combines controlled sensing tolerance, durable IP67 housing, and dual-output configuration for dependable industrial use. As part of the KT series, this Sick model supports consistent performance within β20 Β°C to +60 Β°C operating temperatures. For engineers and industrial buyers, the KTX-WS91142242ZZZZ ensures structured compatibility within Sick contrast sensor portfolios and reliable integration into automation systems.
