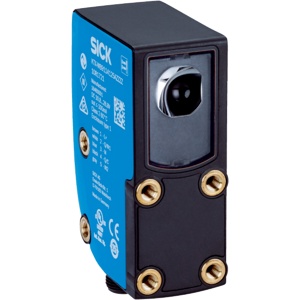

Home Brands Sick Contrast Sensors KTX-WP92241242ZZZZ Sick KTX-WP92241242ZZZZ Contrast Sensor The Sick KTX-WP92241242ZZZZ Contrast Sensor offers Large, design ≤ 25 mm sensing distance , 10.8 V DC ... 28.8 V DC supply voltage, PNP Output Male connector M12, 4-pin connection . Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
Brand Sick Product Type Contrast Sensor Model Number KTX-WP92241242ZZZZ
Sick KTX-WP92241242ZZZZ Contrast Sensor – Technical Specifications Specification Value Dimensions (W x H x D) 30 mm x 53 mm x 78.5 mm Sensing distance ≤ 25 mm Sensing distance tolerance ± 6 mm Housing design Large Light source LED, RGB Wave length 470 nm, 525 nm, 625 nm Light emission Long side of housing Light spot size 5.3 mm x 1.2 mm Light spot direction Horizontal Teach-in mode 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode Supply voltage 10.8 V DC ... 28.8 V DC Ripple ≤ 5 Vpp Current consumption < 100 mA 3) Switching frequency 50 kHz 4) 5) Response time 10 µs 6) 7) Jitter 5 µs 8) Switching output PNP Switching output (voltage) PNP: HIGH = VS - 3 V / LOW = 0 V Output current Imax. 100 mA 9) Retention time (ET) 25 ms, non-volatile memory Connection type Male connector M12, 4-pin Protection class III Enclosure rating IP67 Weight 94 g Housing material VISTAL® Optics material COP Ambient operating temperature –20 °C ... +60 °C Ambient temperature, storage –25 °C ... +75 °C
