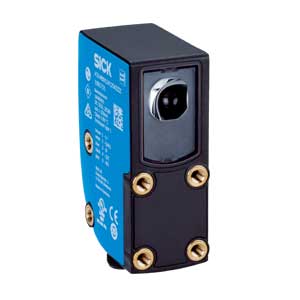

Sick KTX-WP9214125UZZZZ Contrast Sensor
Sick KTX-WP9214125UZZZZ Contrast Sensor features β€13 mm sensing distance, horizontal light spot direction, and PNP switching output, and the KTX-WP9214125UZZZZ belongs to the Sick Contrast Sensor range within the KT series from Sick, supporting 10.8β28.8 V DC supply voltage, 10 Β΅s response time, RGB LED light source with 470 nm, 525 nm, 625 nm wavelengths, IP67 enclosure rating, Male connector M12 5-pin connection, 30 x 53 x 78.5 mm housing, 3.8 mm x 0.9 mm light spot size, and β20 Β°C to +60 Β°C operating temperature.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WP9214125UZZZZ |
Sick KTX-WP9214125UZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 3.8 mm x 0.9 mm |
| Light spot direction | Horizontal 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | PNP |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
The KTX-WP9214125UZZZZ Sick Horizontal Light Spot Contrast Sensor is a KT series device designed for reliable contrast detection in industrial automation systems. It operates with a β€13 mm sensing distance and uses an RGB LED light source with a defined horizontal light spot orientation. The sensor supports 10.8β28.8 V DC supply voltage and delivers a 10 Β΅s response time for fast switching performance. The Sick KTX-WP9214125UZZZZ integrates PNP output with IP67 enclosure protection.
In conveyor systems, packaging lines, labeling machines, and assembly applications, the KTX-WP9214125UZZZZ ensures stable detection of printed marks and color contrasts. The 3.8 mm x 0.9 mm light spot size and horizontal direction enable accurate positioning along moving surfaces. Its M12 5-pin connector supports reliable electrical integration into PLC-controlled industrial automation panels.
The KTX-WP9214125UZZZZ Sick Horizontal Light Spot Contrast Sensor combines defined optical performance and durable housing for continuous industrial operation. As part of the Sick KT series, it operates between β20 Β°C and +60 Β°C with IP67 protection against dust and moisture. Sick provides consistent and repeatable contrast sensing performance suitable for demanding industrial control environments.
