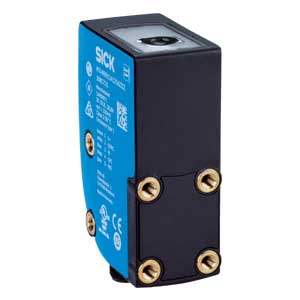

Sick KTX-WP91142252ZZZZ Contrast Sensor
Sick KTX-WP91142252ZZZZ Contrast Sensor features RGB LED light source, 0.9 mm x 3.8 mm light spot, and β€13 mm sensing distance, and is part of the Sick Contrast Sensor range under the KT series from Sick, supporting 10.8β28.8 V DC supply voltage, 10 Β΅s response time, PNP switching output, IP67 enclosure rating, M12 5-pin connector, 30 x 53 x 78.5 mm housing, and β20 Β°C to +60 Β°C operating temperature.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WP91142252ZZZZ |
Sick KTX-WP91142252ZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | PNP |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
The KTX-WP91142252ZZZZ Sick 0.9 mm x 3.8 mm Light Spot Size Contrast Sensor is a KT series device designed for precise contrast detection in industrial automation. It operates with an RGB LED light source and provides a β€13 mm sensing distance with Β±5 mm tolerance. The sensor supports 10.8β28.8 V DC supply voltage and delivers a 10 Β΅s response time for high-speed applications. The Sick KTX-WP91142252ZZZZ is built with IP67 protection and a large housing design.
In packaging lines, conveyors, and labeling systems, the KTX-WP91142252ZZZZ ensures reliable mark and color contrast detection. The vertical light spot direction and precise 0.9 mm x 3.8 mm spot size support accurate positioning and repeatable output switching. Its PNP switching output integrates easily with PLC-controlled automation systems, maintaining stable signal performance even in demanding industrial environments.
The KTX-WP91142252ZZZZ Sick 0.9 mm x 3.8 mm Light Spot Size Contrast Sensor combines defined optical geometry, compact housing dimensions, and robust IP67 construction. As part of the Sick KT series, it supports consistent operation across β20 Β°C to +60 Β°C conditions. Sick ensures dependable performance for industrial detection tasks where fast response and precise contrast recognition are required.
