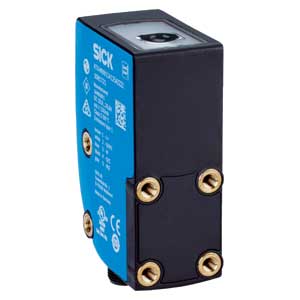

Sick KTX-WN9114224IZZZZ Contrast Sensor
Sick KTX-WN9114224IZZZZ Contrast Sensor delivers β€ 13 mm sensing distance, 10 Β΅s response time, and NPN switching output performance. This Sick NPN Switching Output Contrast Sensor features IP67 enclosure rating, 10.8 V DC to 28.8 V DC supply voltage, large 30 mm Γ 53 mm Γ 78.5 mm housing, Β±5 mm sensing tolerance, RGB LED light source with 470/525/625 nm wavelengths, vertical 0.9 mm Γ 3.8 mm light spot, male connector M12 4-pin connection, and belongs to the KT series for industrial automation in India.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WN9114224IZZZZ |
Sick KTX-WN9114224IZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 4-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
KTX-WN9114224IZZZZ Sick NPN Switching Output Contrast Sensor is designed for high-speed contrast detection in automated systems. The KTX-WN9114224IZZZZ Sick NPN Switching Output Contrast Sensor operates with β€ 13 mm sensing distance, 10 Β΅s response time, NPN switching output, and IP67 enclosure rating. It belongs to the KT series and supports stable RGB LED-based detection for industrial automation environments.
KTX-WN9114224IZZZZ is suitable for packaging machines, label alignment on conveyors, print mark detection, and assembly lines. The fast response time supports high-speed production lines, while Β±5 mm sensing tolerance maintains consistent detection across varying materials.
KTX-WN9114224IZZZZ from Sick operates within β20 Β°C to +60 Β°C and uses a 10.8 V DC to 28.8 V DC supply. As part of the KT series, this Sick contrast sensor ensures dependable signal switching and integration into industrial automation control systems.
