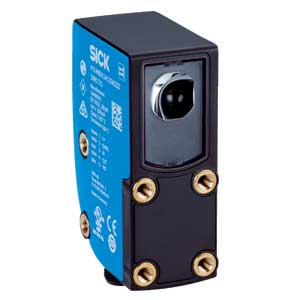

Sick KTX-WN91141252ZZZZ Contrast Sensor
Sick KTX-WN91141252ZZZZ Contrast Sensor features β€13 mm sensing distance, RGB LED light source, and 0.9 mm x 3.8 mm light spot, and the KTX-WN91141252ZZZZ belongs to the Sick Contrast Sensor range within the KT series from Sick, supporting 10.8β28.8 V DC supply voltage, 10 Β΅s response time, NPN switching output, IP67 enclosure rating, Male connector M12 5-pin connection, 30 x 53 x 78.5 mm housing, and β20 Β°C to +60 Β°C operating temperature.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WN91141252ZZZZ |
Sick KTX-WN91141252ZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 13 mm |
| Sensing distance tolerance | Β± 5 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 Β΅s 6) 7) |
| Switching output | NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
The KTX-WN91141252ZZZZ Sick β€ 13 mm Sensing Distance Contrast Sensor is a KT series device designed for precise contrast detection in industrial automation. It operates with a β€13 mm sensing distance and uses an RGB LED light source with 470 nm, 525 nm, and 625 nm wavelengths. The sensor supports 10.8β28.8 V DC supply voltage and delivers a 10 Β΅s response time for fast switching. The Sick KTX-WN91141252ZZZZ integrates an NPN output and IP67 enclosure.
In packaging systems, conveyor lines, and assembly applications, the KTX-WN91141252ZZZZ ensures stable detection of printed marks and color contrasts. The 0.9 mm x 3.8 mm light spot size and vertical direction support accurate positioning. Its M12 5-pin connector allows straightforward electrical integration into PLC-based industrial control panels.
The KTX-WN91141252ZZZZ Sick β€ 13 mm Sensing Distance Contrast Sensor combines defined optical parameters and robust housing for continuous industrial use. As part of the Sick KT series, it operates between β20 Β°C and +60 Β°C with IP67 protection. Sick provides consistent detection performance for industrial automation environments requiring repeatable and reliable contrast sensing.
