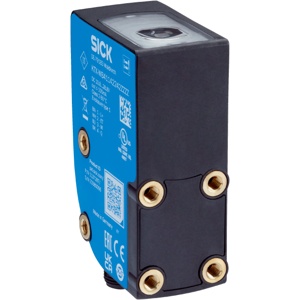

Sick KTX-WN41142242ZZZZ Contrast Sensor
The Sick KTX-WN41142242ZZZZ Contrast Sensor offers Large, design ≤ 13 mm sensing distance, 10.8 V DC ... 28.8 V DC supply voltage, NPN Output Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Model Number | KTX-WN41142242ZZZZ |
Sick KTX-WN41142242ZZZZ Contrast Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light emission | Short device side |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical |
| Teach-in mode | 2-point teach-in |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Ripple | ≤ 5 Vpp |
| Current consumption | < 100 mA 3) |
| Switching frequency | 25 kHz 4) |
| Response time | 20 µs 5) |
| Jitter | 10 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = VS / LOW ≤ 3 V |
| Output current Imax. | 100 mA 6) |
| Retention time (ET) | 35 ms, non-volatile memory |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 94 g |
| Housing material | VISTAL® |
| Optics material | COP |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
