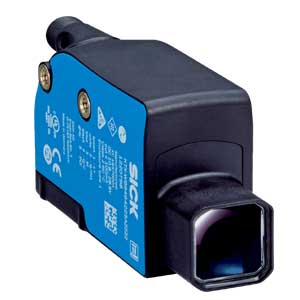

Sick KTX-WB9A94225AZZZZ Contrast Sensor
Sick KTX-WB9A94225AZZZZ Sick RGB LED Large Housing Contrast Sensor provides β€150 mm sensing distance and 20 Β΅s response time. The KTX-WB9A94225AZZZZ operates with 10.8β28.8 V DC supply voltage, push-pull PNP/NPN switching output, IP67 enclosure rating, and Γ 12 mm round light spot with Β±8 mm sensing tolerance. As part of the KT series, this Sick Contrast Sensor from Sick supports structured industrial automation applications in India.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTX-WB9A94225AZZZZ |
Sick KTX-WB9A94225AZZZZ Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | β€ 150 mm |
| Sensing distance tolerance | Β± 8 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | Γ 12 mm |
| Light spot direction | Round, large |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 20 Β΅s 6) 7) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | β20 Β°C ... +60 Β°C |
KTX-WB9A94225AZZZZ Sick RGB LED Large Housing Contrast Sensor is designed for extended sensing range applications in industrial automation. The KTX-WB9A94225AZZZZ operates with β€150 mm sensing distance, 20 Β΅s response time, and 10.8β28.8 V DC supply voltage, combined with push-pull PNP/NPN switching output. It belongs to the KT series and is used where stable contrast detection across varying surface conditions is required.
This Sick contrast sensor is applied in packaging lines, high-speed conveyors, printing systems, and automated assembly equipment. The RGB LED light source with defined round light spot ensures consistent detection on colored marks, reflective films, and printed materials. The large housing design supports mounting in machinery frames while maintaining IP67 enclosure protection.
KTX-WB9A94225AZZZZ from Sick operates within β20 Β°C to +60 Β°C and connects via M12 5-pin interface for control panel integration. As part of the KT series, this contrast sensor delivers reliable switching behavior and stable optical performance in continuous industrial production environments.
