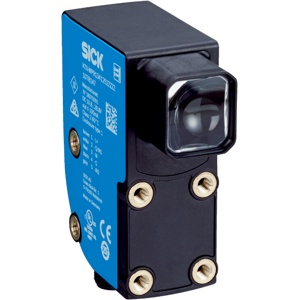

Sick KTX-WB9494125AZZZZ Contrast Sensor
The Sick KTX-WB9494125AZZZZ Contrast Sensor offers Large, design ≤ 150 mm sensing distance, 10.8 V DC ... 28.8 V DC supply voltage, Push-pull: PNP/NPN Output Male connector M12, 5-pin connection. Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Model Number | KTX-WB9494125AZZZZ |
Sick KTX-WB9494125AZZZZ Contrast Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm |
| Sensing distance | ≤ 150 mm |
| Sensing distance tolerance | ± 8 mm |
| Housing design | Large |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light emission | Long side of housing |
| Light spot size | Ø 3.3 mm |
| Light spot direction | Round |
| Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Ripple | ≤ 5 Vpp |
| Current consumption | < 100 mA 3) |
| Switching frequency | 6.25 kHz 4) 5) |
| Response time | 80 µs 6) 7) |
| Jitter | 40 µs 8) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Output current Imax. | 100 mA 9) |
| Retention time (ET) | 25 ms, non-volatile memory |
| Connection type | Male connector M12, 5-pin |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 94 g |
| Housing material | VISTAL® |
| Optics material | Glass |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
