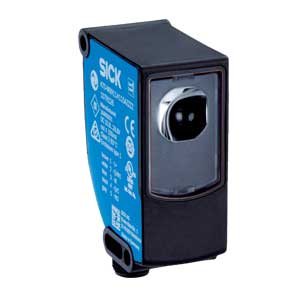

Sick KTS-WB91141152ZZZZ Contrast Sensor
Sick KTS-WB91141152ZZZZ Contrast Sensor provides ≤ 13 mm sensing distance, RGB LED light source, and 10 µs response time performance. This Sick Vertical Light Spot Contrast Sensor features push-pull PNP/NPN switching output, IP67 enclosure rating, 10.8–28.8 V DC supply, 26 mm × 62 mm × 47.5 mm housing dimensions, ±5 mm sensing tolerance, vertical light spot direction, male connector M12 5-pin connection, and belongs to the KT series for industrial automation in India.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTS-WB91141152ZZZZ |
Sick KTS-WB91141152ZZZZ Contrast Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 5 mm |
| Housing design | Middle |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical 2) |
| Adjustment | - |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Response time | 10 µs 6) 7) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Connection type | Male connector M12, 5-pin |
| Ambient operating temperature | –20 °C ... +60 °C |
KTS-WB91141152ZZZZ Sick Vertical Light Spot Contrast Sensor is engineered for accurate contrast detection in industrial automation systems. The KTS-WB91141152ZZZZ Sick Vertical Light Spot Contrast Sensor delivers ≤ 13 mm sensing distance, RGB LED light source, 10 µs response time, and push-pull PNP/NPN switching output for flexible control integration. It belongs to the KT series and operates on 10.8–28.8 V DC supply with IP67 enclosure protection for reliable factory use.
The KTS-WB91141152ZZZZ is commonly applied in packaging machines, conveyor lines, printing equipment, and automated assembly processes requiring precise contrast mark detection. Its vertical light spot design supports accurate sensing on narrow or defined print marks, while the 10 µs response time enables operation in high-speed production environments. The M12 connector ensures secure electrical connection in industrial panels.
KTS-WB91141152ZZZZ Sick Vertical Light Spot Contrast Sensor combines controlled sensing tolerance, durable IP67 housing, and dual-output flexibility for dependable industrial performance. As part of the KT series, this Sick model supports stable detection within –20 °C to +60 °C operating conditions. For engineers and industrial buyers, the KTS-WB91141152ZZZZ ensures structured compatibility within Sick contrast sensor portfolios and reliable integration into automation systems.
