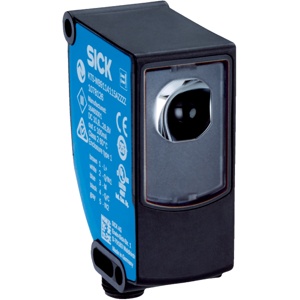

Home Brands Sick Contrast Sensors KTS-MBD724115AZZZZ Sick KTS-MBD724115AZZZZ Contrast Sensor The Sick KTS-MBD724115AZZZZ Contrast Sensor offers Middle, design ≤ 27.5 mm sensing distance , 10.8 V DC ... 28.8 V DC supply voltage, Push-pull: PNP/NPN Output Male connector M12, 5-pin connection . Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
Brand Sick Product Type Contrast Sensor Model Number KTS-MBD724115AZZZZ
Sick KTS-MBD724115AZZZZ Contrast Sensor – Technical Specifications Specification Value Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm Sensing distance ≤ 27.5 mm Sensing distance tolerance ± 3 mm Housing design Middle Light source LED, white Wave length 400 nm ... 750 nm Light emission Long side of housing Light spot size 0.8 mm x 8 mm Light spot direction Longitudinal, narrow Teach-in mode Teach-in dynamic, auto mode Supply voltage 10.8 V DC ... 28.8 V DC Ripple ≤ 5 Vpp Current consumption < 100 mA 3) Switching frequency 16.5 kHz 4) Response time 60 µs 5) Jitter 30 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V Output current Imax. 100 mA 6) Retention time (ET) 25 ms, non-volatile memory Connection type Male connector M12, 5-pin Protection class III Enclosure rating IP67 Weight 68 g Housing material VISTAL® Optics material COP Ambient operating temperature –20 °C ... +60 °C Ambient temperature, storage –25 °C ... +75 °C
