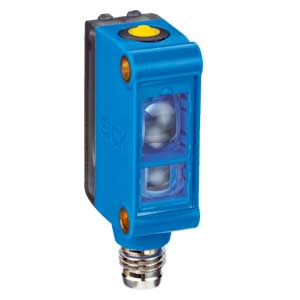

Sick KTM-WP11181P Contrast Sensor
The Sick KTM-WP11181P Contrast Sensor ensures a β€ 12.5 mm sensing distance, RGB LED illumination, and a 32 Β΅s response time for reliable detection. This compact device features a 12 mm Γ 31.5 mm Γ 21 mm housing, PNP switching output, IP67 enclosure rating, vertical light spot, and a 1.6 mm Γ 9.5 mm spot size. It includes a teach-in button, M8 4-pin connector, Β±3 mm sensing tolerance, and operates from β10 Β°C to +55 Β°C. It aligns with Sick, Sick Contrast Sensor, and KT Series categories.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTM-WP11181P |
Sick KTM-WP11181P Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Sensing distance tolerance | Β± 3 mm |
| Housing design | Small |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 1.6 mm x 9.5 mm |
| Light spot direction | Vertical 2) |
| Adjustment | Teach-in button |
| Supply voltage | 12 V DC ... 24 V DC |
| Response time | 32 Β΅s 5) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Enclosure rating | IP67 |
| Connection type | Male connector M8, 4-pin |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
The Sick KTM-WP11181P Contrast Sensor provides dependable contrast and mark detection for automation systems. The model KTM-WP11181P uses a β€ 12.5 mm sensing distance, RGB LED wavelengths, and a 32 Β΅s response time to ensure stable switching performance. As part of the KT series, this Sick contrast sensor supports industrial applications that require precise colour and contrast evaluation with compact mounting dimensions.
This sensor is suitable for conveyors, packaging lines, printing machines, and assembly processes. Its PNP output, compact size, and defined light spot support consistent detection of print marks on labels, films, cartons, and moving materials. The KTM-WP11181P maintains stable operation in continuous industrial workflows, delivering reliable contrast recognition essential for machine timing and quality control.
The Sick KTM-WP11181P Contrast Sensor combines a β€ 12.5 mm sensing range, 32 Β΅s response time, and IP67-rated protection to meet demanding industrial requirements. The model KTM-WP11181P operates reliably across varied environmental conditions, supported by the proven performance associated with the Sick brand. Its KT series construction makes it suitable for applications where accurate mark detection, durable design, and dependable switching output are required.
