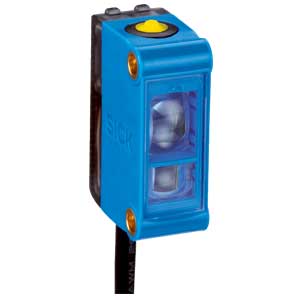

Sick KTM-WN11184P Contrast Sensor
Sick KTM-WN11184P Contrast Sensor features ≤12.5 mm sensing distance, RGB LED light source, and teach-in button adjustment, and the KTM-WN11184P belongs to the Sick Contrast Sensor range within the KT series from Sick, supporting 12–24 V DC supply voltage, 32 µs response time, NPN switching output with light/dark switching mode, IP67 enclosure rating, 12 x 31.5 x 21 mm small housing, cable open end 4-wire 2 m connection, 1.6 mm x 9.5 mm light spot size, and –10 °C to +55 °C operating temperature.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTM-WN11184P |
Sick KTM-WN11184P Contrast Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | ≤ 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design | Small |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 1.6 mm x 9.5 mm |
| Light spot direction | Vertical 2) |
| Adjustment | Teach-in button |
| Supply voltage | 12 V DC ... 24 V DC |
| Response time | 32 µs 5) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Enclosure rating | IP67 |
| Connection type | Cable open end, 4-wire, 2 m |
| Ambient operating temperature | –10 °C ... +55 °C |
The KTM-WN11184P Sick Small Housing Teach-in Button Contrast Sensor is a KT series device designed for precise contrast detection in industrial automation systems. It operates with a ≤12.5 mm sensing distance and utilizes an RGB LED light source for accurate mark recognition. The sensor supports 12–24 V DC supply voltage and delivers a 32 µs response time suitable for fast production lines. The Sick KTM-WN11184P integrates NPN switching output and IP67 protection.
In packaging machines, conveyor systems, labeling equipment, and assembly applications, the KTM-WN11184P ensures stable detection of printed marks and contrast differences. The teach-in button enables simple setup adjustments, while the compact 12 mm small housing supports installation in confined spaces. Its 4-wire 2 m cable connection simplifies integration with PLC-controlled automation panels.
The KTM-WN11184P Sick Small Housing Teach-in Button Contrast Sensor combines defined optical parameters and compact mechanical design for continuous industrial use. As part of the Sick KT series, it operates between –10 °C and +55 °C with IP67 enclosure rating. Sick provides consistent detection performance for industrial automation tasks requiring reliable and repeatable contrast sensing.
