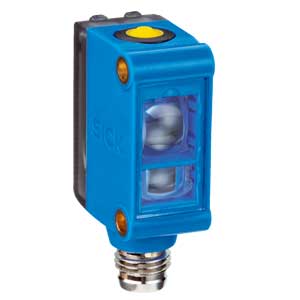

Sick KTM-WN11182P Contrast Sensor
| Brand | Sick |
| Product Type | Contrast Sensor |
| Product | KTM-WN11182P |
Sick KTM-WN11182P Contrast Sensor β Technical Specifications
| Specification | Value |
|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Sensing distance tolerance | Β± 3 mm |
| Housing design | Small |
| Light source | LED, RGB |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light spot size | 1.6 mm x 9.5 mm |
| Light spot direction | Vertical 2) |
| Adjustment | Teach-in button |
| Supply voltage | 12 V DC ... 24 V DC |
| Response time | 32 Β΅s 5) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Enclosure rating | IP67 |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
