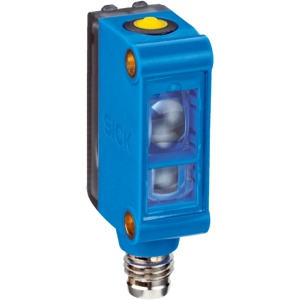

Home Brands Sick Contrast Sensors KTM-MB8A191P Sick KTM-MB8A191P Contrast Sensor The Sick KTM-MB8A191P Contrast Sensor offers Small, design ≤ 11 mm sensing distance , 12 V DC ... 24 V DC supply voltage, PNP, NPN Output Male connector M8, 4-pin; Male connector M8, 4-pin connection . Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
Brand Sick Product Type Contrast Sensor Model Number KTM-MB8A191P
Sick KTM-MB8A191P Contrast Sensor – Technical Specifications Specification Value Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Sensing distance ≤ 11 mm Sensing distance tolerance ± 3 mm Housing design Small Light source LED, white Light emission Long side of housing Light spot size Ø 1 mm (10 mm) Light spot direction Round, small Supply voltage 12 V DC ... 24 V DC Ripple ≤ 5 Vpp Current consumption < 50 mA 3) Switching frequency 10 kHz 4) Response time 50 µs 5) Jitter 25 µs Switching output PNP, NPN Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V, NPN: HIGH = approx. UV / LOW ≤ 2 V Output current Imax. 50 mA 6) Time delay None Connection type Male connector M8, 4-pin; Male connector M8, 4-pin Protection class III Enclosure rating IP67 Weight 20 g Housing material ABS Optics material PMMA Ambient operating temperature –10 °C ... +55 °C Ambient temperature, storage –20 °C ... +75 °C
