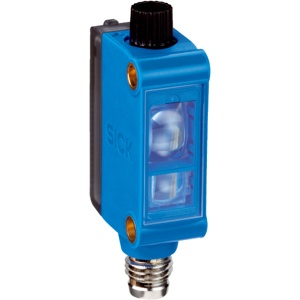

Sick KTM-MB31191P Contrast Sensor
The Sick KTM-MB31191P Contrast Sensor offers Small, design β€ 12.5 mm sensing distance, 12 V DC ... 24 V DC supply voltage, PNP, NPN Output Male connector M8, 4-pin; Male connector M8, 4-pin connection. Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Model Number | KTM-MB31191P |
Sick KTM-MB31191P Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Sensing distance tolerance | Β± 3 mm |
| Housing design | Small |
| Light source | LED, white |
| Light emission | Long side of housing |
| Light spot size | Γ 2 mm (12.5 mm) |
| Light spot direction | Round |
| Supply voltage | 12 V DC ... 24 V DC |
| Ripple | β€ 5 Vpp |
| Current consumption | < 50 mA 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 Β΅s 5) |
| Jitter | 25 Β΅s |
| Switching output | PNP, NPN |
| Switching output (voltage) | PNP: HIGH = UV β€ 2 V / LOW approx. 0 V, NPN: HIGH = approx. UV / LOW β€ 2 V |
| Output current Imax. | 50 mA 6) |
| Time delay | None |
| Connection type | Male connector M8, 4-pin; Male connector M8, 4-pin |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 20 g |
| Housing material | ABS |
| Optics material | PMMA |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β20 Β°C ... +75 Β°C |
