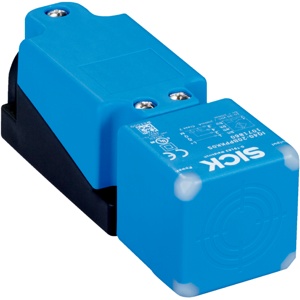

Sick IQ40-20BDSKC0K Proximity Sensor
The Sick IQ40-20BDSKC0K Proximity Sensor offers a Rectangular; Short-body, 20 mm sensing range, Flush installation type, NO output, and Male connector M12, 2-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IQ Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ40-20BDSKC0K |
Sick IQ40-20BDSKC0K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular; Short-body |
| Sensing range Sn | 20 mm |
| Safe sensing range Sa | 16.2 mm |
| Installation type | Flush |
| Switching frequency | 150 Hz |
| Connection type | Male connector M12, 2-pin |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67, IP68, IP69K |
| Special applications | Difficult application conditions |
| Items supplied | Push-lock mounting system (1x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 Vpp 1) |
| Voltage drop | β€ 4 V 2)β€ 4.5 V 3) |
| Time delay before availability | < 100 ms |
| Hysteresis | 5 % ... 15 % 4) |
| Reproducibility | β€ 2 % 5) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β25 Β°C ... +85 Β°C |
| Housing material | Plastic, PA 66 |
| Sensing face material | Plastic, PA 66 |
| Tightening torque, max. | 1.8 Nm |
| Protection class | II 6) |
| Unit weight | 0.140 Kilograms |
| Net unit weight | 0.14 Kilograms |
| Country of origin | Malaysia |
