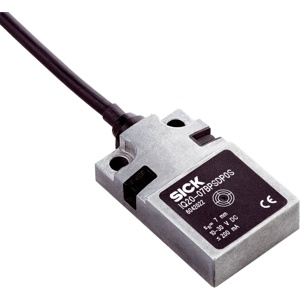

Sick IQ20-07BPSDU2S Proximity Sensor
The Sick IQ20-07BPSDU2S Proximity Sensor offers a Rectangular, 7 mm sensing range, Flush installation type, PNP NO output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ20-07BPSDU2S |
Sick IQ20-07BPSDU2S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 7 mm |
| Safe sensing range Sa | 5.67 mm |
| Installation type | Flush |
| Switching frequency | 150 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % 1) |
| Voltage drop | < 2.5 V 2) |
| Time delay before availability | β€ 20 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | Β± 5 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Zinc diecast, GD Zn |
| Sensing face material | Plastic, PA12 |
