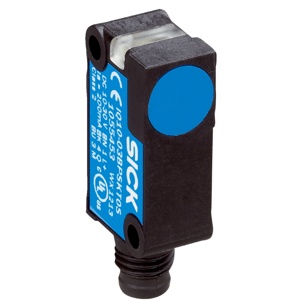

Sick IQ10-06NPSKR8SS22 Proximity Sensor
The Sick IQ10-06NPSKR8SS22 Proximity Sensor offers a Rectangular, 6 mm sensing range, Non-flush installation type, PNP NO output, and Cable with connector M8, 3-pin, 0.2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IQ Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ10-06NPSKR8SS22 |
Sick IQ10-06NPSKR8SS22 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Dimensions (W x H x D) | 10 mm x 28 mm x 16 mm |
| Sensing range Sn | 6 mm |
| Safe sensing range Sa | 4.86 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable with connector M8, 3-pin, 0.2 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % 1) |
| Voltage drop | β€ 3 V 2) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 2 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | 10 mA |
| Cable material | PVC |
| Conductor size | 0.25 mmΒ² |
| Cable diameter | Γ 3.7 mm |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Tightening torque, max. | β€ 1 Nm |
| Unit weight | 20.000 Grams |
| Net unit weight | 20 Grams |
| Unit volume | 16.25 Cubic Centimetres (cmΒ³) |
| Country of origin | Malaysia |
