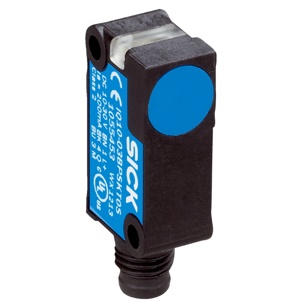

Sick IQ10-03BPSKR8S Proximity Sensor
The Sick IQ10-03BPSKR8S Proximity Sensor offers a Rectangular, 3 mm sensing range, Flush installation type, PNP NO output, and Cable with connector M8, 3-pin, with knurled nuts, 0.2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ10-03BPSKR8S |
Sick IQ10-03BPSKR8S Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 3 mm |
| Safe sensing range Sa | 2.43 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable with connector M8, 3-pin, with knurled nuts, 0.2 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1 Nm |
