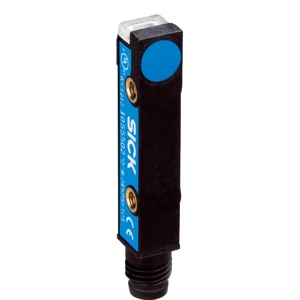

Sick IQ08-04NPSKRDSS14 Proximity Sensor
The Sick IQ08-04NPSKRDSS14 Proximity Sensor offers a Rectangular, 4 mm sensing range, Non-flush installation type, PNP NO output, and Cable with connector M8, 3-pin, with knurled nuts, 0.4 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IQ08-04NPSKRDSS14 |
Sick IQ08-04NPSKRDSS14 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable with connector M8, 3-pin, with knurled nuts, 0.4 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1.5 Nm |
| Cable material | PVC |
| Conductor size | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
