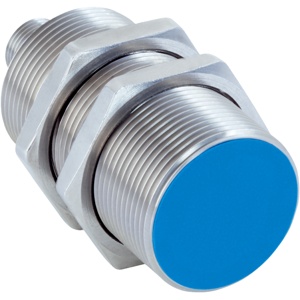

Home Sick Proximity Sensor IMX30-25BPOZC0S Sick IMX30-25BPOZC0S Proximity Sensor The Sick IMX30-25BPOZC0S Proximity Sensor offers a Metric; Standard design , 25 mm sensing range, Quasi-flush installation type, PNP NC output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMX Series.
Brand Sick Product Type Proximity Sensor Model Number IMX30-25BPOZC0S
Sick IMX30-25BPOZC0S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M30 x 1.5 Diameter Γ 30 mm Sensing range Sn 25 mm Safe sensing range Sa 20.25 mm Installation type Quasi-flush Switching frequency 25 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NC Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP68 1) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 150 ms Hysteresis 5 % ... 15 % Reproducibility β€ 7 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 50 mA Ambient operating temperature β25 Β°C ... +75 Β°C Housing material Nickel-plated brass Sensing face material Plastic, LCP Housing length 70.2 mm Thread length 52.2 mm Tightening torque, max. β€ 70 Nm Protection class III
