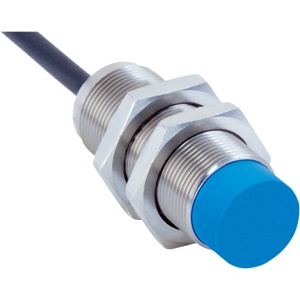

Sick IMX18-30NNOZU2S Proximity Sensor
The Sick IMX18-30NNOZU2S Proximity Sensor offers a Metric; Standard design, 30 mm sensing range, Non-flush installation type, NPN NC output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMX Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMX18-30NNOZU2S |
Sick IMX18-30NNOZU2S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 30 mm |
| Safe sensing range Sa | 24.3 mm |
| Installation type | Non-flush |
| Switching frequency | 10 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1) |
| Special features | Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator |
| Special applications | Zones with coolants and lubricants |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Time delay before availability | β€ 150 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 7 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 50 mA |
| Indication | Output state (on/off) |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, LCP |
| Housing length | 59 mm |
| Thread length | 46.5 mm |
| Tightening torque, max. | β€ 30 Nm |
| Protection class | III |
| Unit weight | 0.099 Kilograms |
| Net unit weight | 0.099 Kilograms |
| Country of origin | Hungary |
| Cable material | PUR |
| Conductor size | 0.34 mmΒ² |
| Cable diameter | Γ 4.5 mm |
