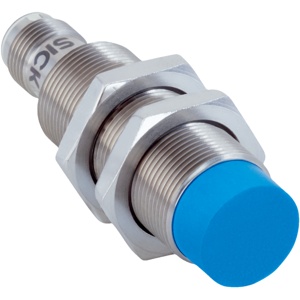

Sick IMS18-12NNONC0S Proximity Sensor
The Sick IMS18-12NNONC0S Proximity Sensor offers a Metric; Standard design, 12 mm sensing range, Non-flush installation type, NPN NC output, and Male connector M12, 4-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMS18-12NNONC0S |
Sick IMS18-12NNONC0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 12 mm |
| Safe sensing range Sa | 9.72 mm |
| Installation type | Non-flush |
| Switching frequency | 900 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Supply voltage | 7.2 V DC ... 60 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2.5 V 1) |
| Time delay before availability | 100 ms |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA 3) |
| No load current | β€ 10 mA |
| Ambient operating temperature | β40 Β°C ... +100 Β°C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material | Plastic, LCP |
| Housing length | 69 mm |
| Thread length | 43 mm |
| Tightening torque, max. | Typ. 60 Nm |
| Protection class | III |
