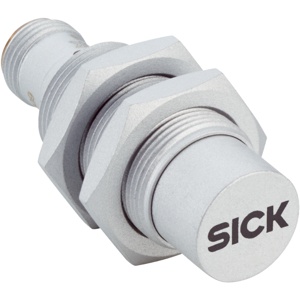

Sick IMR18-15NPSTC0S Proximity Sensor
The Sick IMR18-15NPSTC0S Proximity Sensor offers a Metric; Standard design, 15 mm sensing range, Non-flush installation type, PNP NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMR18-15NPSTC0S |
Sick IMR18-15NPSTC0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 15 mm |
| Safe sensing range Sa | 12.1 mm |
| Installation type | Non-flush |
| Switching frequency | 1,500 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 |
| Special features | Reduction factor 1, Weld immune |
| Special applications | Welding range, Difficult application conditions |
| Items supplied | Mounting nut, brass, PTFE coating (2x)Washer, brass, PTFE coating, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 1.8 V 1) |
| Hysteresis | 3 % ... 15 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | β€ Β± 10 % β€ Β± 15 % 4) |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 15 mA |
| Ambient operating temperature | β30 Β°C ... +85 Β°C |
| Housing material | PTFE coating, brass |
| Sensing face material | Plastic, PTFE coating |
| Housing length | 52 mm |
| Thread length | 26 mm |
| Tightening torque, max. | Typ. 15 Nm |
| Protection class | II 5) |
| Unit weight | 58.750 Grams |
| Net unit weight | 58.75 Grams |
| Country of origin | Germany |
