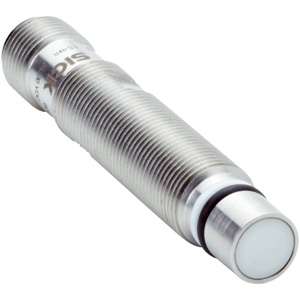

Sick IMP12-1B5PPVC0F Proximity Sensor
The Sick IMP12-1B5PPVC0F Proximity Sensor offers a Metric, 1.5 mm sensing range, Flush installation type, PNP Complementary output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMP12-1B5PPVC0F |
Sick IMP12-1B5PPVC0F Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 1.5 mm |
| Safe sensing range Sa | 1.2 mm |
| Installation type | Flush |
| Switching frequency | 600 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 50 ms |
| Hysteresis | 1 % ... 15 % 3) |
| Reproducibility | β€ 7 % 4) 5) |
| Temperature drift (of Sr) | Β± 10 % 6)Β± 15 % 7) |
| Continuous current Ia | β€ 200 mA |
| Ambient operating temperature | β25 Β°C ... +100 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Ceramics, ZrO2 |
| Housing length | 93 mm |
| Thread length | 75 mm |
| Tightening torque, max. | β€ 40 Nm |
