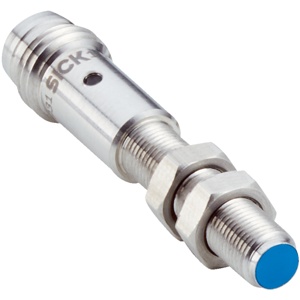

Sick IMM05-2B5NSVT0S Proximity Sensor
The Sick IMM05-2B5NSVT0S Proximity Sensor offers a Metric; Standard design, 2.5 mm sensing range, Quasi-flush installation type, DC 3-wire NO output, and Connector M8, 3-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMM05-2B5NSVT0S |
Sick IMM05-2B5NSVT0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M5 x 0.5 |
| Diameter | Γ 5 mm |
| Sensing range Sn | 2.5 mm |
| Safe sensing range Sa | 2.025 mm |
| Installation type | Quasi-flush |
| Switching frequency | 4,000 Hz |
| Connection type | Connector M8, 3-pin |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, V2A stainless steel (2x)Washer, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 30 ms |
| Hysteresis | 1 % ... 20 % |
| Reproducibility | β€ 2.5 % 3) |
| Temperature drift (of Sr) | β€ 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β10 Β°C ... +60 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 38 mm |
| Thread length | 20 mm |
| Tightening torque, max. | β€ 1.5 Nm |
| Cable material | PUR |
| Conductor size | 0.14 mmΒ² |
| Cable diameter | Γ 2.9 mm |
| Switching output | PNP |
