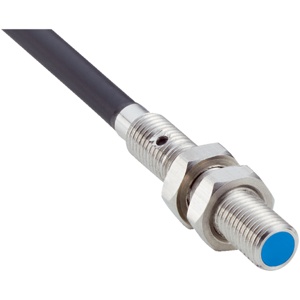

Home Sick Proximity Sensor IMM04-01BNSVU2S Sick IMM04-01BNSVU2S Proximity Sensor The Sick IMM04-01BNSVU2S Proximity Sensor offers a Metric; Standard design , 1 mm sensing range, Flush installation type, NPN NO output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
Brand Sick Product Type Proximity Sensor Model Number IMM04-01BNSVU2S
Sick IMM04-01BNSVU2S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M4 x 0.5 Diameter Ø 4 mm Sensing range Sn 1 mm Safe sensing range Sa 0.81 mm Installation type Flush Switching frequency 4,200 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 20 % 1) Voltage drop ≤ 2 V 2) Time delay before availability ≤ 10 ms Hysteresis 1 % ... 15 % Reproducibility ≤ 2.5 % 3) Temperature drift (of Sr) ≤ 10 % Continuous current Ia ≤ 100 mA Ambient operating temperature –25 °C ... +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 22 mm Thread length 20 mm Tightening torque, max. ≤ 0.8 Nm Cable material PUR Cable diameter Ø 2.5 mm
