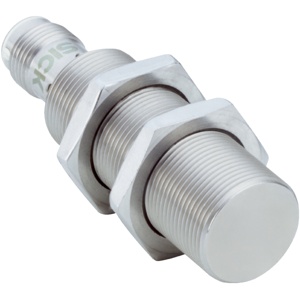

Sick IMI18-08BPONC0S Proximity Sensor

Name: Sick IMI18-08BPONC0S
Brand: IndMALL
SKU: 5f92d68d8ce2
Rating: 4.8 (4 reviews)

The Sick IMI18-08BPONC0S Proximity Sensor offers a Metric, 8 mm sensing range, Flush installation type, PNP NC output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMI Series.

Datasheet

Brand	Sick
Product Type	Proximity Sensor
Model Number	IMI18-08BPONC0S

Sick IMI18-08BPONC0S Proximity Sensor – Technical Specifications

Specification	Value
Housing	Metric
Thread size	M18 x 1
Diameter	Ø 18 mm
Sensing range Sn	8 mm
Safe sensing range Sa	6.48 mm
Installation type	Flush
Switching frequency	50 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP68, IP69K 1)
Special features	Sensing face made of stainless steel V4A, Resistant to cleaning agents
Special applications	Hygienic and washdown zones, Difficult application conditions
Items supplied	Mounting nut, V4A stainless steel (2x)
Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 % 1)
Voltage drop	≤ 2 V 2)
Time delay before availability	≤ 300 ms
Hysteresis	1 % ... 20 %
Reproducibility	≤ 2 % 3)
Temperature drift (of Sr)	≤ 10 %
Continuous current Ia	≤ 200 mA
No load current	≤ 10 mA
Ambient operating temperature	–25 °C ... +75 °C
Housing material	Stainless steel V4A, DIN 1.4404 / AISI 316L
Sensing face material	Stainless steel V4A, DIN 1.4404 / AISI 316L
Housing length	64.7 mm
Thread length	45.7 mm
Tightening torque, max.	≤ 60 Nm
Protection class	III
Unit weight	59.000 Grams
Net unit weight	59 Grams
Country of origin	Hungary
