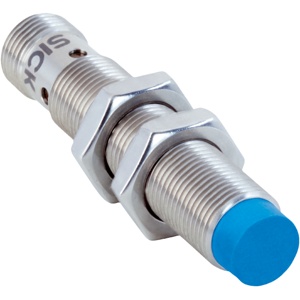

Home Sick Proximity Sensor IMG12-08NPSZC0S Sick IMG12-08NPSZC0S Proximity Sensor The Sick IMG12-08NPSZC0S Proximity Sensor offers a Metric; Standard design , 8 mm sensing range, Non-flush installation type, PNP NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMG Series.
Brand Sick Product Type Proximity Sensor Model Number IMG12-08NPSZC0S
Sick IMG12-08NPSZC0S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M12 x 1 Diameter Γ 12 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1)IP68 1)IP69K 2) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 100 ms Hysteresis 3 % ... 20 % Reproducibility β€ 2 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 10 mA Ambient operating temperature β40 Β°C ... +85 Β°C Housing material Nickel-plated brass Sensing face material Plastic, LCP Housing length 65 mm Thread length 43 mm Tightening torque, max. β€ 12 Nm Protection class III Cable material PUR Conductor size 0.25 mmΒ² Cable diameter Γ 3.9 mm
