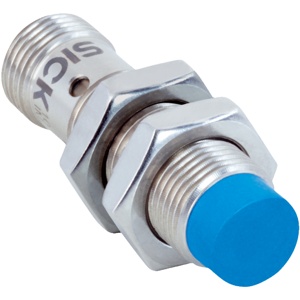

Sick IMG12-08NNSZC0K Proximity Sensor
The Sick IMG12-08NNSZC0K Proximity Sensor offers a Metric; Short-body, 8 mm sensing range, Non-flush installation type, NPN NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMG Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMG12-08NNSZC0K |
Sick IMG12-08NNSZC0K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1)IP68 1)IP69K 2) |
| Special features | Resistant against coolant lubricants, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Indication | Switching statusPermanently on: Switching output active |
| Ambient operating temperature | β40 Β°C ... +85 Β°C |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, LCP |
| Housing length | 45 mm |
| Thread length | 23 mm |
| Tightening torque, max. | β€ 12 Nm |
| Protection class | III |
| Unit weight | 27.000 Grams |
| Net unit weight | 27 Grams |
| Country of origin | Hungary |
| Cable material | PUR |
| Conductor size | 0.25 mmΒ² |
| Cable diameter | Γ 3.9 mm |
| Ambient temperature, storage | β25 Β°C ... +75 Β°C |
| Number of switching points | Up to 4 adjustable switching points or windows |
| Switching modes | Single point, Window mode, Two point mode, Visual adjustment indicator |
