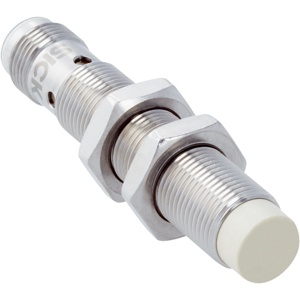

Home Sick Proximity Sensor IMF12-08NPONC0S Sick IMF12-08NPONC0S Proximity Sensor The Sick IMF12-08NPONC0S Proximity Sensor offers a Metric; Standard design , 8 mm sensing range, Non-flush installation type, PNP NC output, and Male connector M12, 4-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
Brand Sick Product Type Proximity Sensor Model Number IMF12-08NPONC0S
Sick IMF12-08NPONC0S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin 1) Switching output PNP Output function NC Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Hysteresis 3 % ... 20 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Ambient operating temperature –40 °C ... +100 °C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Plastic, LCP Housing length 65 mm Thread length 43 mm Tightening torque, max. Typ. 32 Nm Protection class III Cable material PP Conductor size 0.34 mm²
