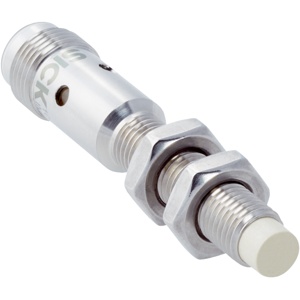

Sick IMF08-04NPPNC0S Proximity Sensor
The Sick IMF08-04NPPNC0S Proximity Sensor offers a Metric; Standard design, 4 mm sensing range, Non-flush installation type, PNP Complementary output, and Male connector M12, 4-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMF08-04NPPNC0S |
Sick IMF08-04NPPNC0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 4,000 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β40 Β°C ... +100 Β°C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material | Plastic, LCP |
| Housing length | 60 mm |
| Thread length | 28 mm |
| Tightening torque, max. | Typ. 14 Nm |
| Protection class | III |
