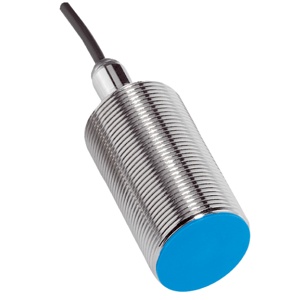

Home Sick Proximity Sensor IME30-22BPSZW2SS42 Sick IME30-22BPSZW2SS42 Proximity Sensor The Sick IME30-22BPSZW2SS42 Proximity Sensor offers a Metric; Standard design , 22 mm sensing range, Quasi-flush installation type, PNP NO output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME30-22BPSZW2SS42
Sick IME30-22BPSZW2SS42 Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M30 1.5 Diameter Γ 30 mm Sensing range Sn 22 mm Safe sensing range Sa 17.8 mm Installation type Quasi-flush Switching frequency 20 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 200 ms Hysteresis 1 % ... 15 % Reproducibility β€ 5 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 10 mA Ambient operating temperature β25 Β°C ... +75 Β°C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 70 mm Thread length 54 mm Tightening torque, max. β€ 70 Nm
