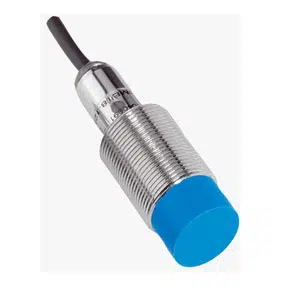

IME18-12NNOZW2K: 1040995 - Sick NPN NC Inductive Sensor

Housing	Cylindrical thread design, Short-body
Thread Size	M18 x 1
Diameter	Ø 18 mm
Installation Type	Non-flush
Connection Type	2 m Cable

Sick NPN NC Inductive Sensor IME18-12NNOZW2K, 1040995 Technical Specifications:

Specification	Value
Housing	Cylindrical thread design, Short-body
Thread size	M18 x 1
Diameter	Ø 18 mm
Sensing range Sn	12 mm
Safe sensing range Sa	9.72 mm
Installation type	Non-flush
Switching frequency	1,000 Hz
Connection type	2 m Cable
Switching output	NPN
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67 1)
Items supplied	Mounting nut, brass, nickel-plated (2x)

Get A Quote for Sick NPN NC Inductive Sensor IME18-12NNOZW2K part no: 1040995 at unbeatable prices. Detailed Specifications of IME18-12NNOZW2K, 1040995 feature Cylindrical thread design, Short-body housing, M18 x 1 thread size, Ø 18 mm diameter, 12 mm sensing range, 9.72 mm safe sensing range, Non-flush Installation, 1,000 Hz frequency, 2 m Cable, NPN, NC output, DC 3-wire . Match Your Needs with a Quote for your requirement of Sick NPN NC Inductive Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
