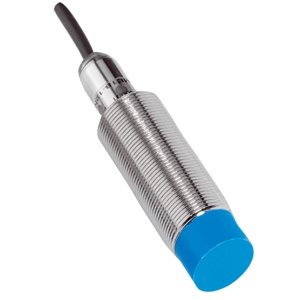

Sick IME18-12NDOZY2S Proximity Sensor
The Sick IME18-12NDOZY2S Proximity Sensor offers a Metric; Standard design, 12 mm sensing range, Non-flush installation type, NC output, and Cable, 2-wire, 2 m, Oil-resistant connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IME18-12NDOZY2S |
Sick IME18-12NDOZY2S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 12 mm |
| Safe sensing range Sa | 9.72 mm |
| Installation type | Non-flush |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 2-wire, 2 m, Oil-resistant |
| Output function | NC |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 4 V 1)β€ 4.5 V 2) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 2 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 67 mm |
| Thread length | 42 mm |
| Tightening torque, max. | β€ 40 Nm |
| Unit weight | 95.000 Grams |
| Net unit weight | 95 Grams |
| Country of origin | Malaysia |
