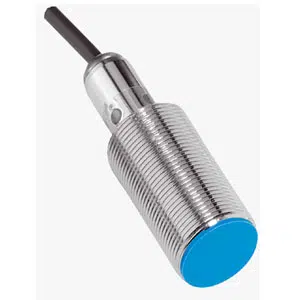

Sick IME18-12BPSZQ9KS24 Proximity Sensor
The Sick IME18-12BPSZQ9KS24 proximity sensor provides 12 mm sensing range, M18 short-body housing, and PNP normally open output inductive. Manufactured by Sick, this Sick Proximity Sensor belongs to the IME series and supports quasi-flush installation, 500 Hz switching frequency, DC 3-wire wiring, and IP67 enclosure with a 0.3 m cable and M12 connector.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IME18-12BPSZQ9KS24 |
Sick IME18-12BPSZQ9KS24 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Short-body |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 12 mm |
| Safe sensing range Sa | 9.72 mm |
| Installation type | Quasi-flush |
| Switching frequency | 500 Hz |
| Connection type | 0.3 m Cable with M12 male connector, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x),Washer, brass, nickel-plated (2 x) |
The IME18-12BPSZQ9KS24 Sick M18 Short body Proximity Sensor is an inductive proximity sensor used for metal detection in industrial automation systems. This Sick proximity sensor offers a 12 mm nominal sensing distance, M18 cylindrical short-body housing, PNP normally open output, and IP67 enclosure rating. It belongs to the IME series and is commonly deployed in Indian manufacturing environments requiring defined sensing behavior.
In practical applications, the IME18-12BPSZQ9KS24 proximity sensor is installed on conveyors, packaging machines, automated assembly stations, and material handling equipment. The quasi-flush mounting design supports flexible mechanical integration, while the stable switching frequency enables consistent object detection. Its DC 3-wire PNP output allows straightforward connection to PLC-based control systems used in automation lines.
The Sick IME18-12BPSZQ9KS24 proximity sensor provides standardized mechanical dimensions and predictable electrical characteristics for industrial use. As part of the IME series, this Sick proximity sensor supports long-term operation with clearly defined sensing range and output behavior. The combination of short-body design, enclosure protection, and connection format makes it suitable for continuous operation in industrial automation environments.
