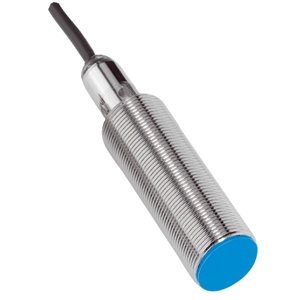

Home Sick Proximity Sensor IME18-08BDSZY2S Sick IME18-08BDSZY2S Proximity Sensor The Sick IME18-08BDSZY2S Proximity Sensor offers a Metric; Standard design , 8 mm sensing range, Flush installation type, NO output, and Cable, 2-wire, 2 m, Oil-resistant connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME18-08BDSZY2S
Sick IME18-08BDSZY2S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M18 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Flush Switching frequency 1,000 Hz Connection type Cable, 2-wire, 2 m, Oil-resistant Output function NO Electrical wiring DC 2-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 10 % Voltage drop ≤ 4 V 1)≤ 4.5 V 2) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 3) 4) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 100 mA Ambient operating temperature –25 °C ... +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 67 mm Thread length 52 mm Tightening torque, max. ≤ 40 Nm
